Table micromotor Emax EVOlution 230V / 73W / 1'000~40'000 RPM
MSA20.362

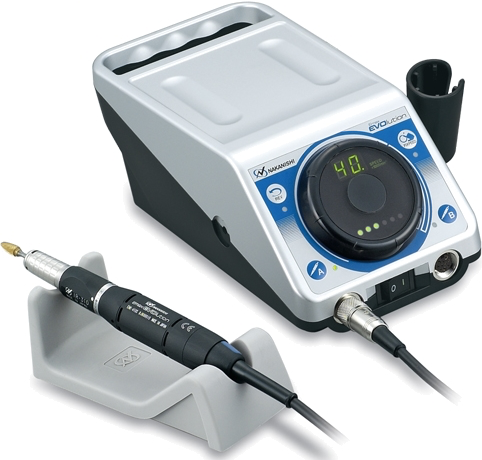

Table Micromotor Emax EVOlution
The NAKANISHI Emax EVOlution micromotor incorporates the latest cutting-edge technology, delivering outstanding performance for professional watchmakers.
Features :
- Digital display on the central roller
- Speed variator with memory option
- Maximum torque: 4.3 cN-m
- Start switch on the control unit or directly on the micromotor
- Clockwise and counterclockwise rotation
- Option to connect a second motor with A/B selector (non-simultaneous)
Delivered with :
- 1 control unit MSA20.364
- 1 motor MSA20.362-M1
- 1 handpiece MSA20.360-P2
- 1 chuck Ø 2.35 mm MSA20.360-C235
- 1 chuck Ø 3.00 mm MSA20.360-C300
- 1 stand MSA20.360-S
- 1 set of flat and pin wrench keys for locking/unlocking chucks
- 1 power cord
Note : Speed adjustable between 1’000 and 40’000 RPM.
You are in a geographical area with an approved distributor (no direct purchase possible). Your order will be redirected and processed by our local partner.
Technical Data
Brand
NAKANISHI
Kg
2.300
Voltage
230 V / 50-60 Hz
Size
130 x 254 x 97 mm
Details
Delivered with :
- 1 control unit MSA20.364
- 1 motor MSA20.362-M1
- 1 handpiece MSA20.360-P2
- 1 chuck Ø 2.35 mm MSA20.360-C235
- 1 chuck Ø 3.00 mm MSA20.360-C300
- 1 stand MSA20.360-S
- 1 set of flat and pun wrench keys for locking/unlocking chucks
- 1 power supply cord.
