Measuring bench Sylvac PS16 V2 LV50 for internal measuring
MSA15.175

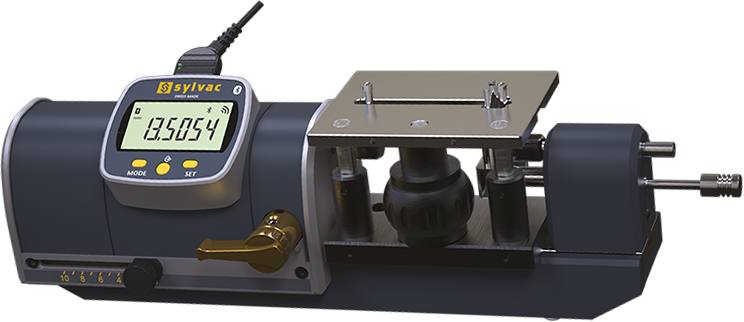

Measuring bench Sylvac PS16 V2 LV50 for internal measuring
The SYLVAC® PS16 V2 LV horizontal measuring bench is similar to the MSA15.170, but equipped with a table and anvils assembly allowing to measure internal diameters from Ø 12 to 62 mm.
- Originally designed for measuring watch cases, it is also suitable for measuring rings and thin parts.
- 2-point measurement with positioning of the workpiece in the measuring axis by 2 movable centring pins.
- Table height adjustable by up to 20 mm.
Additional features :
- Delivered with two 0.4 mm thick measuring inserts.
- Weight: 5.100 kg
- Measuring range: 12 - 62 mm
- Resolution: 0.0001 mm
You are in a geographical area with an approved distributor (no direct purchase possible). Your order will be redirected and processed by our local partner.
Technical Data
Brand
SYLVAC
Measuring range
12 - 62 mm
Resolution
0.0001 mm
Kg
5.100
Details
Delivered with two 0.4 mm thick measuring inserts.
